Swiss-Type / Sliding Head Lathes

Double built-in spindle, removable guide bush Multi-Functional Tooling system with Y1/Y2 axis, max load up to 17 live tools. Two deep drilling holder beside sub spindle

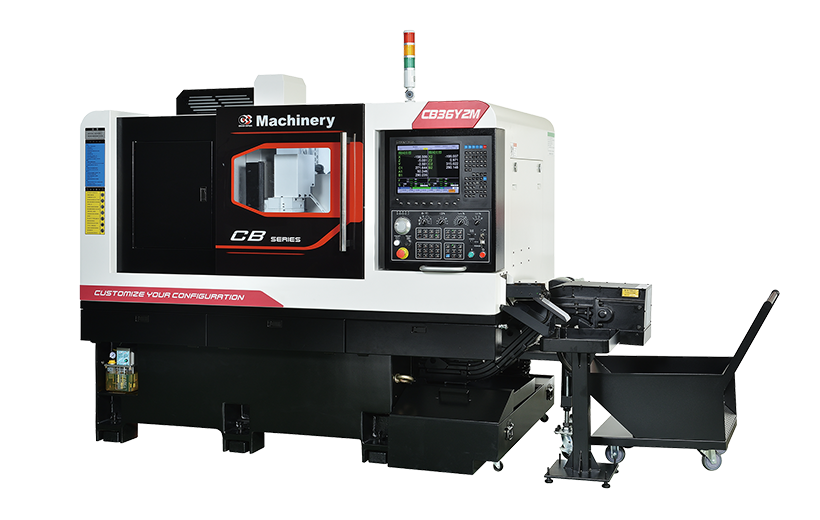

Swisstype CNC lathe can be installed with or without rotary* guide bush to process whether it is a long or short workpiece. The tooling system can equip 6 O.D. tools, 5 I.D. tools, and up to 17 live tools, with double Y-axis, which gives you the ability to process multiple complex components. Direct Drive Enhanced roundness and accuracy are achieved, as there are no gears or belts causing vibrations.

Swiss type lathe with / without guide bush device depends on part length, easy to change machining type. * Double spindle with functional tooling system to provide maximum productivity. - Back tooling system with Y2 axis, max load 8 pcs live tool for multi-functional machining. "Two deep drilling holder beside sub spindle for more functional machining.Roller type linear guide way for all axes, It can provide high position accuracy and high machining performance.

A combination of main and sub-spindle ∅32/36 mm bar capacity X, Y, Z-axis rapid traverses 30m/min Linear ways on 5 axes PC-based control Collet chucking system Finished parts catcher and conveyor Direct Drive Enhanced roundness and accuracy are achieved, as there are no gears or belts causing vibrations.

Sliding headstock design ∅32/36 mm bar capacity X, Y, Z-axis rapid traverses 30m/min Linear ways on X, Y, Z-axes 6,000 rpm spindle is optional PC-based CNC control Reggedly constructed cast iron base

Double Y-axis Double built-in spindle B-axis live tooling 360° rotate function
